AEP100-Analog Device Chipsets

Features

complies with ANSI and ETSI requirements
matched to Analog Devices AD20MSP910, AD20MSP918 and AD20MSP930 chipsets
very low THD
1,500V minimum isolation
all materials approved to UL94V-0
excellent quality at competitive prices due to high volume production
manufactured in ISO-9001 approved facility

AEP100-Analog Device Chipsets

Electrical Specifications @ 25°C

Operating Temperature -40° to +85°C

Part
Number

Package

IC Driver

Turns
Ratio
±2%
Line : IC

L_P
(mH)

L_L
(µH)
Max.

C_WW
(pF)
Max.

DCR
(Ohms)
Max.
Line / IC

THD (Linearity) Typical

Longitudinal Balance
Min.

Insertion Loss
Max.

Frequency Response
Max.

Isolation Voltage (Vrms)

AEP100-T

TH

AD20MSP910 CO/CPE
AD20MSP91B CO/CPE

1:1

5,0
±10%

25

60

3,00 / 3,00

-80dB
30kHz

-46dB
10kHz-1,1MHz

0,5dB
300kHz

1,0dB
30kHz -1,1MHz

1.500

AEP100-S

SMD

AEP110-T

TH

AD20MSP91B CO

1,27:1

3,22
±10%

7,5

50

2,45 / 2,00

-80dB
30kHz

-50dB
30kHz-1,1MHz

0,5dB
100kHz

1,0dB
30kHz -1,1MHz

AEP110-S

SMD

AEP120-T

TH

AD20MSP930 CO

1,11:1

2,03
Min.

10

60

1,30 / 1,50

-80dB
30kHz

-50dB
30kHz-1,1MHz

0,5dB
100kHz

1,0dB
30kHz -1,1MHz

AEP120-S

SMD

AEP130-T

TH

AD20MSP930 CPE

1,2:1

2,42
Min.

10

50

1,30 / 1,50

-80dB
30kHz

-50dB
30kHz-1,1MHz

0,5dB
100kHz

1,0dB
30kHz -1,1MHz

AEP130-S

SMD

AEP140-T

TH

AD20MSP910 CO/CPE
AD20MSP91B CO/CPE

1:1

5,0
±10%

25

60

3,0 / 3,0

-80dB
30kHz

-40dB
30kHz-1,1MHz

0,5dB
100kHz

1,0dB
30kHz -1,1MHz

AEP140-S

SMD

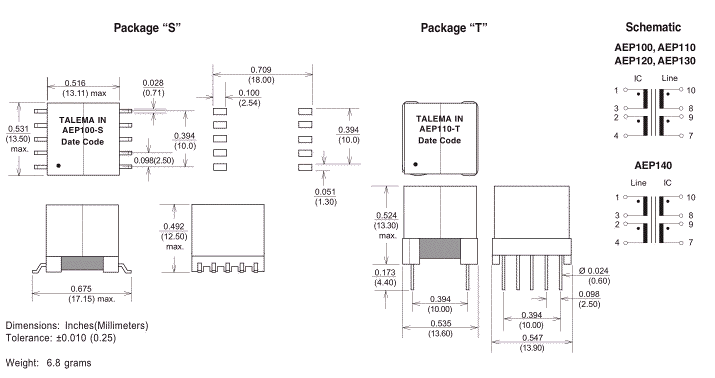

Dimensions & Schematic - Pins
