SEP Series-SHDSL,SDSL Trans.

Features

complies with ANSI and ETSI requirements
matched to Infineons PEB22622, PEF22623 & PEF24622 chipsets
very low THD
2,000V minimum isolation
all materials approved to UL94V-0
excellent quality at competitive price due to high volume production
manufactured in ISO-9001 approved facility

SEP Series - SHDSL, SDSL Transformers

Electrical Specifications @ 25°C
Operating Temperature -40° to +85°C

Part Number	Package	Turns Ratio ±2% Line : IC : Sense	L_P (mH) ±10%	L_L (µH) Max.	DCR (Ohms Max.) Line / IC	DCR (Ohms Max.) Sense Winding	Isolation Voltage (Vrms)
SEP100-T	TH	3,2 : 1 : 1	3,0	25	5,0 / 0,80	3,6	2.000
SEP100-S	SMD

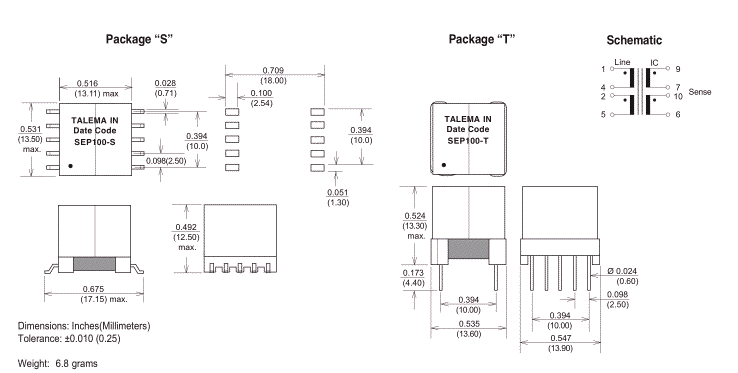

Dimensions & Schematic - Pins
